Completed AI Digital workplace with Metro's architectural millwork
← All projectsMiami, Florida Completed 2026

Architectural millwork · A Metro case study

AI Digital.

Where the millwork
becomes the architecture.

Explore the project

—The project

A place to gather.
A challenge to build.

A planted ribbon suspended over a town hall. A coffee station curved around a spiral stair. A continuous plane of wood overhead.

At AI Digital’s Miami headquarters, Gensler designed the places where people come together. Metro drew, fabricated and installed the millwork that makes those spaces work — with City Construction Group coordinating the build.

From the structural support and drainage of the hanging planter to the stone, acrylic and glass of the coffee station, the work reached well beyond the visible finish.

Architecture
Gensler
General contractor
City Construction Group
Millwork
Metro Millwork
Location
51 NW 36th Street
Miami, Florida
Drawn in-house.Built in Hollywood, FL.Installed by Metro.Read the complete case study
The hanging planter and curved coffee station
Site film · October 2026Move through the work.Open film Silent original footage · Selective exposure correction

01 / The hanging planter

Real upper-floor view of the suspended planter ribbon and town hall

01 / 18Actual project photograph

A garden in suspension.

The planted ribbon, seen from the upper floor.

Received October 6, 2026

Scroll to build
  1. 01 / 18

    A garden in suspension.

    The planted ribbon, seen from the upper floor.

    Real upper-floor view of the suspended planter ribbon and town hall

    Received October 6, 2026

  2. 02 / 18

    First, the drawing.

    The module plan sets out the ribbon. The connection sheets explain what holds it.

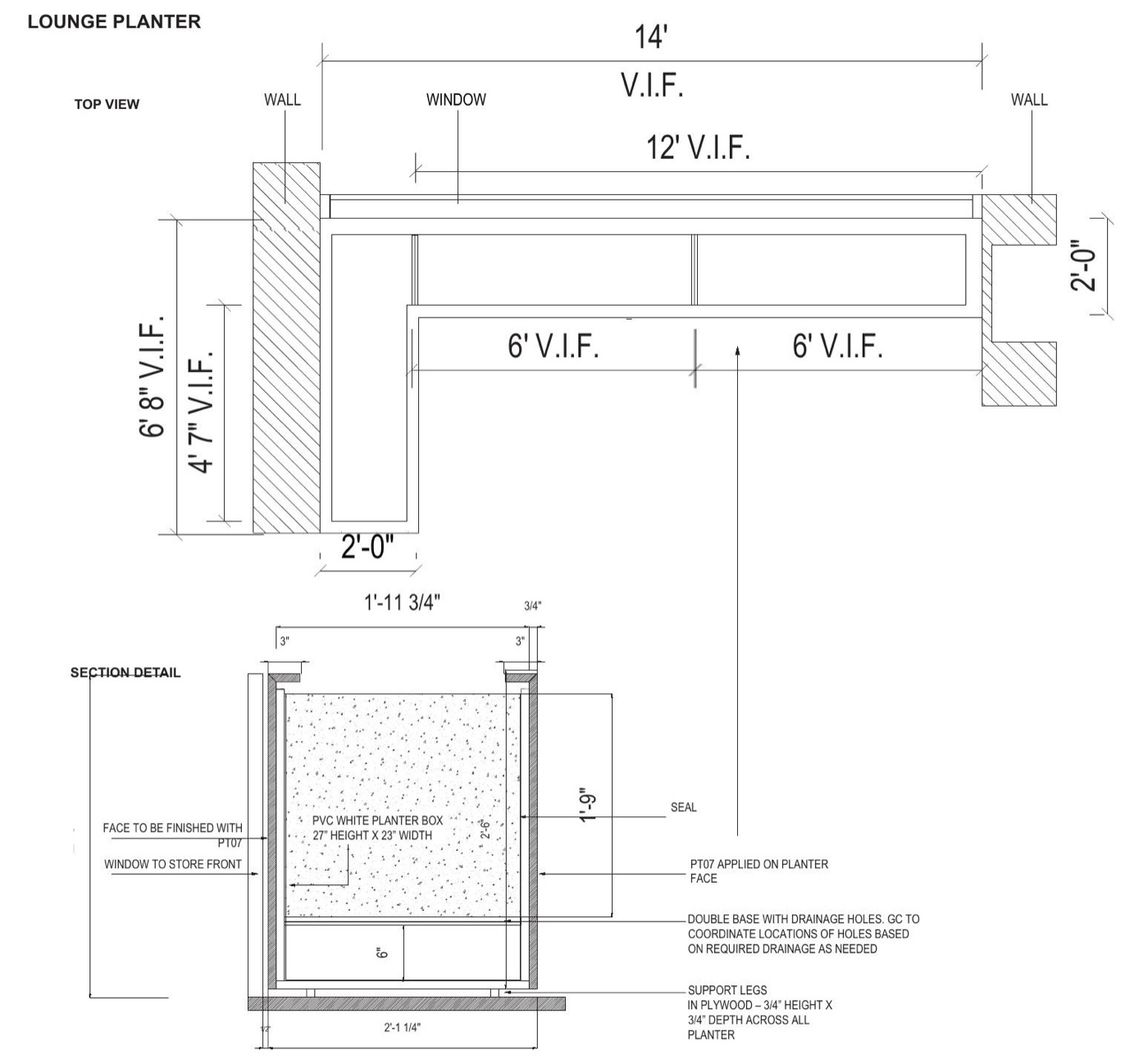

    Planter source drawing with the module plan and sections

    Project shop drawings · Drawing basis retained

  3. 03 / 18

    Start with the structure.

    An issued joist detail: existing concrete, an angle bracket, anchors and threaded support.

    Drawing-based reconstruction: start with the structure. Open the 3D study.Open this construction study ↗

    Separate issued condition. Concrete cut away for inspection; some fixing positions are explanatory.

  4. 04 / 18

    The connection above.

    The strut, threaded connections and wire-rope terminations form the suspension detail.

    Drawing-based reconstruction: the connection above. Open the 3D study.Open this construction study ↗

    Representative section. Hardware profiles and termination spacing are explanatory.

  5. 05 / 18

    One module. Then the ribbon.

    Straight and curved aluminum frames follow the module layout.

    Drawing-based reconstruction: one module. then the ribbon. Open the 3D study.Open this construction study ↗

    Whole-ribbon study from the module schedule. Support locations and cable spans are explanatory.

  6. 06 / 18

    A separate planting enclosure.

    The PVC enclosure and waterproofed well sit inside the frame.

    Drawing-based reconstruction: a separate planting enclosure. Open the 3D study.Open this construction study ↗

    Later section drawing. Waterproofing extent and thickness are explanatory.

  7. 07 / 18

    Water has a path.

    Mesh protects the collection zone. The issued direction retains an exposed drain.

    Drawing-based reconstruction: water has a path. Open the 3D study.Open this construction study ↗

    Collector profile and fall are explanatory. The final outlet and building outfall are not reconstructed.

  8. 08 / 18

    The covering closes the frame.

    The oak-look laminate face follows the curve, with access to the concealed work.

    Drawing-based reconstruction: the covering closes the frame. Open the 3D study.Open this construction study ↗

    PVC core with a laminate face. Curved frame datum and module-end junctions remain qualified.

  9. 09 / 18

    Light draws the underside.

    A recessed channel and diffuser carry light along the ribbon.

    Drawing-based reconstruction: light draws the underside. Open the 3D study.Open this construction study ↗

    LED profile is explanatory. No unverified output, wiring route or electrical rating is shown.

  10. 10 / 18

    The planted zones.

    The plan locates the planting. The photographs show the living finish.

    Drawing-based reconstruction: the planted zones. Open the 3D study.Open this construction study ↗

    Planting locations follow the plan. The illustrated fill level is not a measured soil depth.

  11. 11 / 18

    The rod meets the bracket.

    A close inspection of the threaded connection.

    Drawing-based reconstruction: the rod meets the bracket. Open the 3D study.Open this construction study ↗

    Separate issued joist condition. Some hardware profiles and positions are explanatory.

  12. 12 / 18

    Where straight modules meet.

    The end frames establish the junction between two modules.

    Drawing-based reconstruction: where straight modules meet. Open the 3D study.Open this construction study ↗

    Frame interface inspection. Exact field cuts and the complete bolted joint are not reconstructed.

  13. 13 / 18

    The straight meets the curve.

    A straight frame turns into a curved module.

    Drawing-based reconstruction: the straight meets the curve. Open the 3D study.Open this construction study ↗

    The curved frame datum remains an explanatory interpretation of the module drawings.

  14. 14 / 18

    Inside the collection zone.

    The mesh, sloped well and collector can be read together.

    Drawing-based reconstruction: inside the collection zone. Open the 3D study.Open this construction study ↗

    Inspection cutaway. Fall, mesh gauge and collector profile are explanatory; the final outlet is omitted.

  15. 15 / 18

    The channel and the diffuser.

    The underside light is integrated into the covering.

    Drawing-based reconstruction: the channel and the diffuser. Open the 3D study.Open this construction study ↗

    The source specifies a recessed channel. Its exact proprietary profile is not documented.

  16. 16 / 18

    The frame, in the field.

    The curved cage and suspension before the covering.

    Actual curved aluminum planter cage with suspension before covering

    RFI record · July 13, 2026

  17. 17 / 18

    The detail becomes real.

    Cable, panel joints and integrated light, together on site.

    Real cable loops, laminate panel joints and illuminated planter underside

    September 25, 2026

  18. 18 / 18

    Back to the room.

    Built by Metro Millwork Inc.

    Sharp real view of the completed suspended planter and integrated light above the town hall

    October 1, 2026

Inside the work

Take it apart.
Put it back together.

The whole ribbon, its representative section and a separate joist detail. Turn each study and inspect the parts.

Drawing conflicts are retained: the whole-ribbon schedule and later section use different dimensions. Hidden profiles, motion and selected support locations are explanatory. No load, capacity or as-built survey is implied.

Drawing-based material study of the hanging planter

02The coffee station

Stone · Acrylic · Glass · Wood

Every material.
The same curve.

Stone, acrylic and glass meeting millwork and light — around a spiral stair, with very little room for error.

02 Inside the work

The curve
holds everything.

Follow the geometry through the cabinet, stone, acrylic, glass and integrated light.

Continue to the project

METRO The curved coffee station

0104

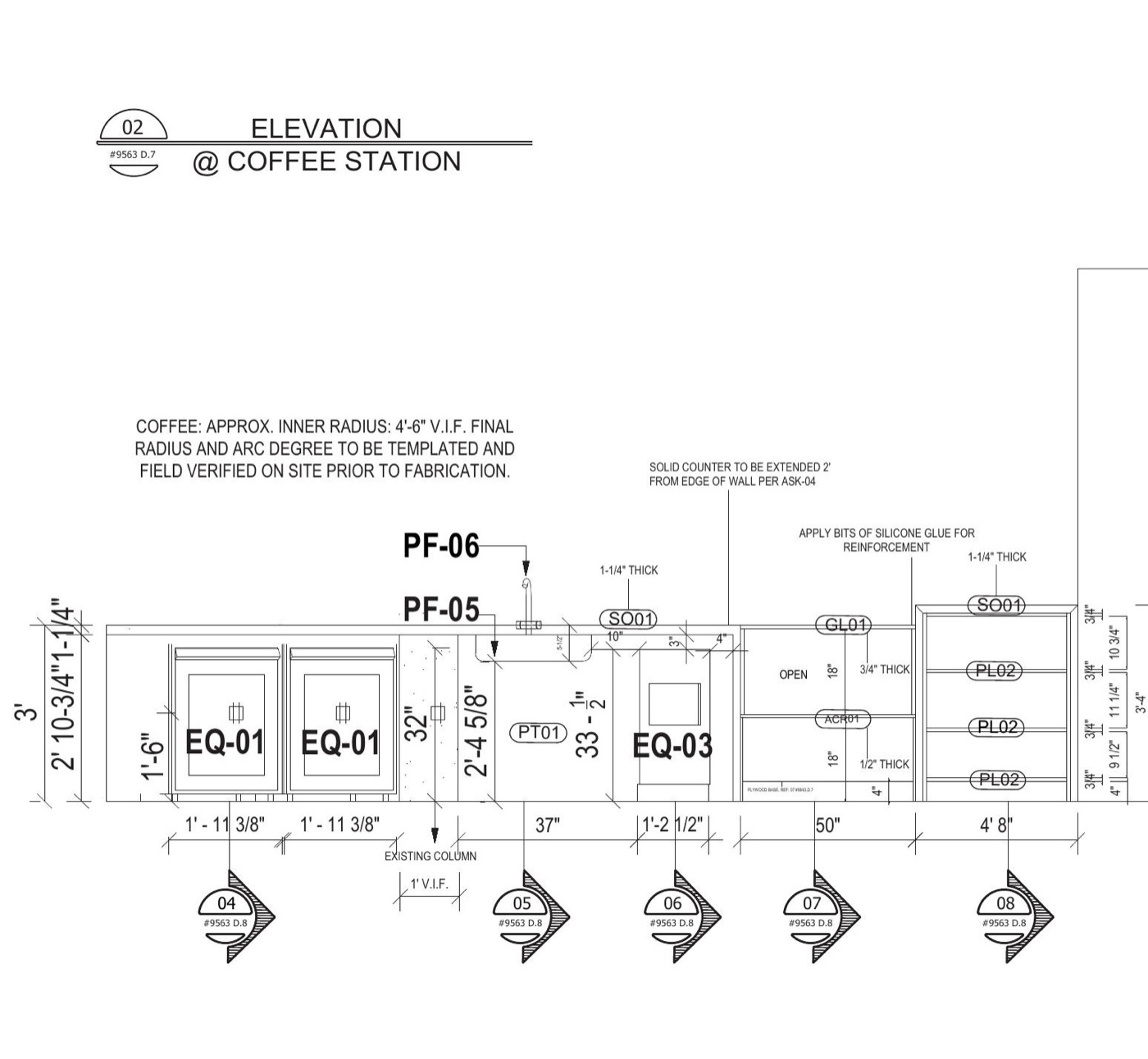

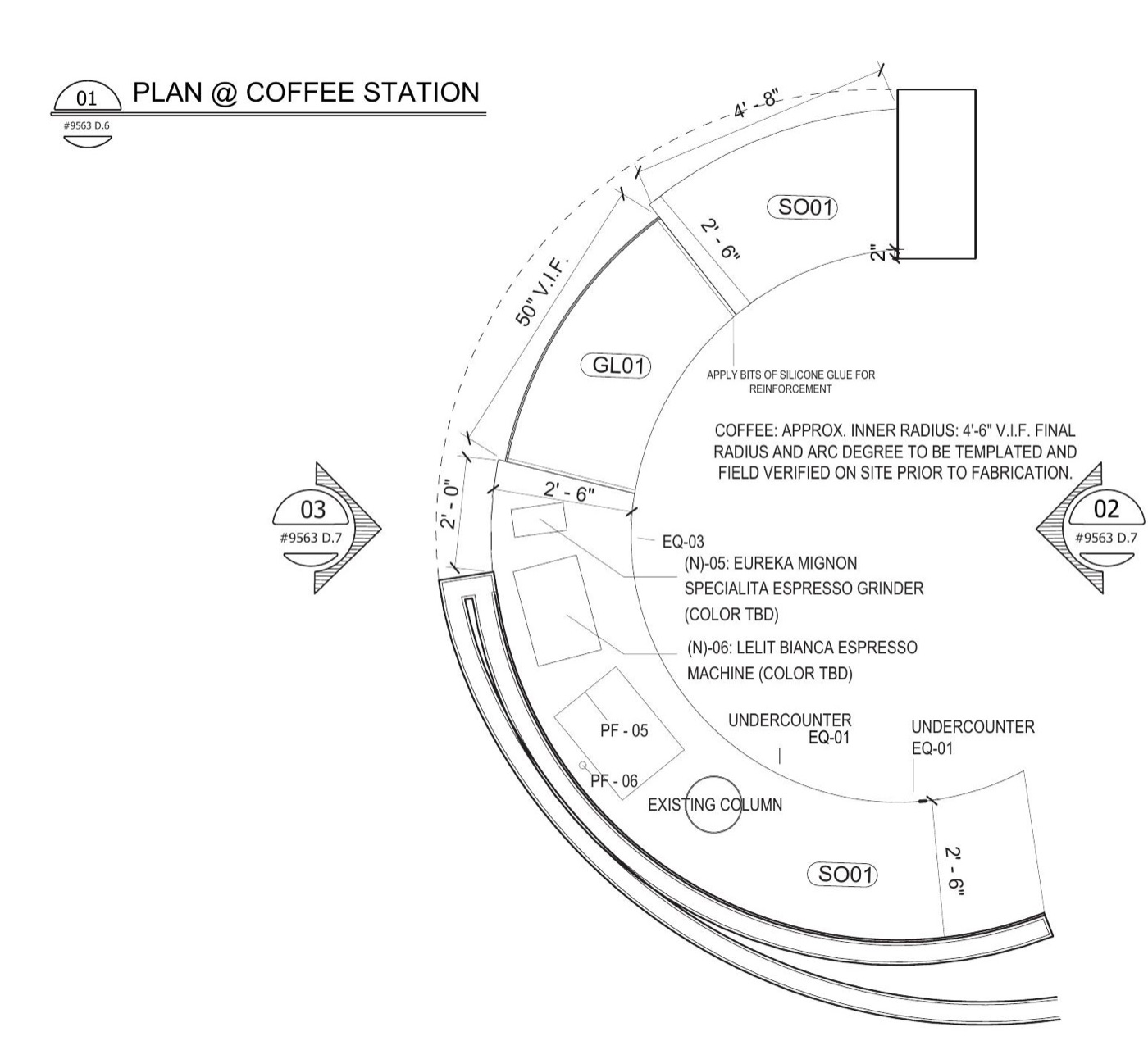

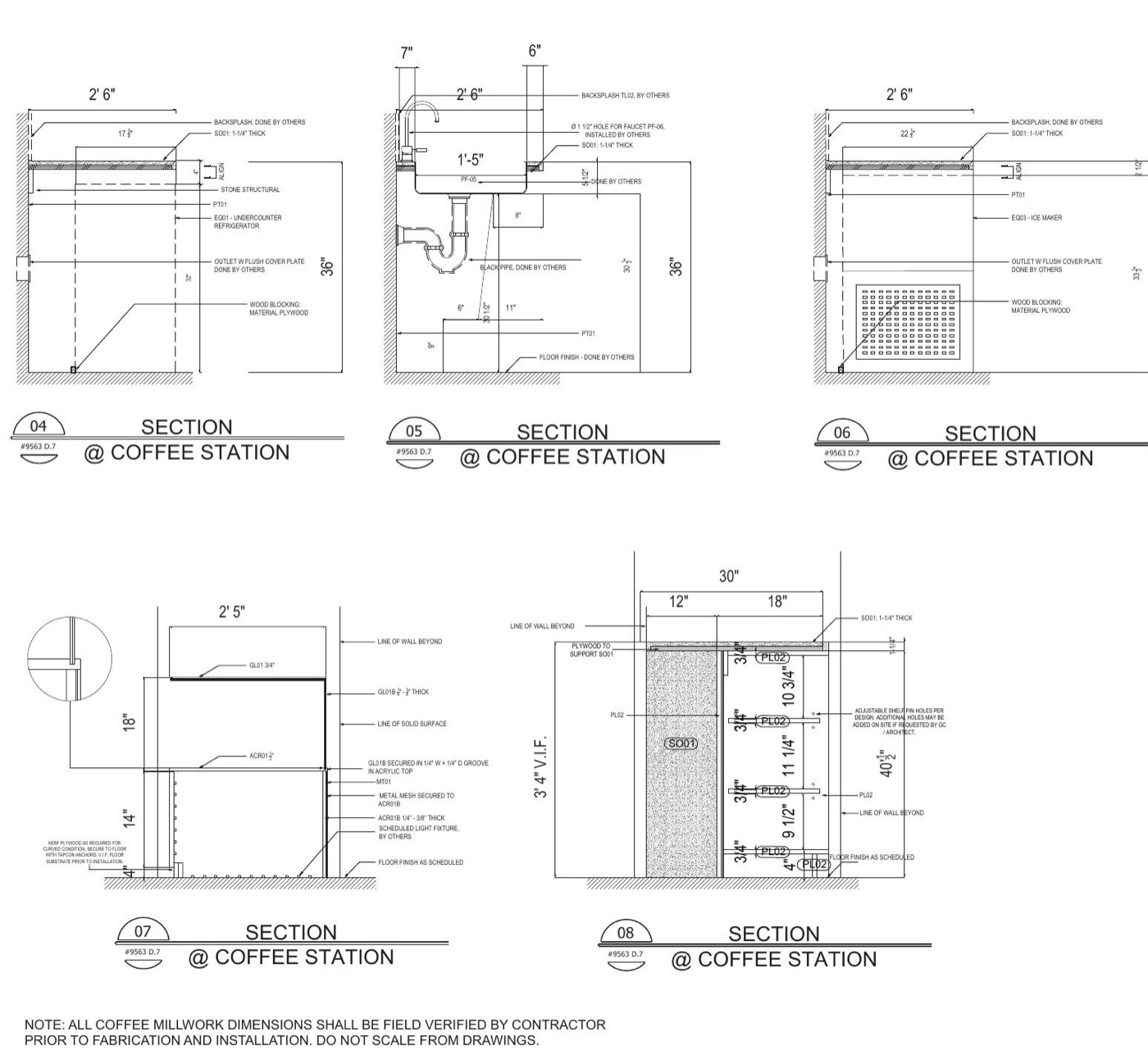

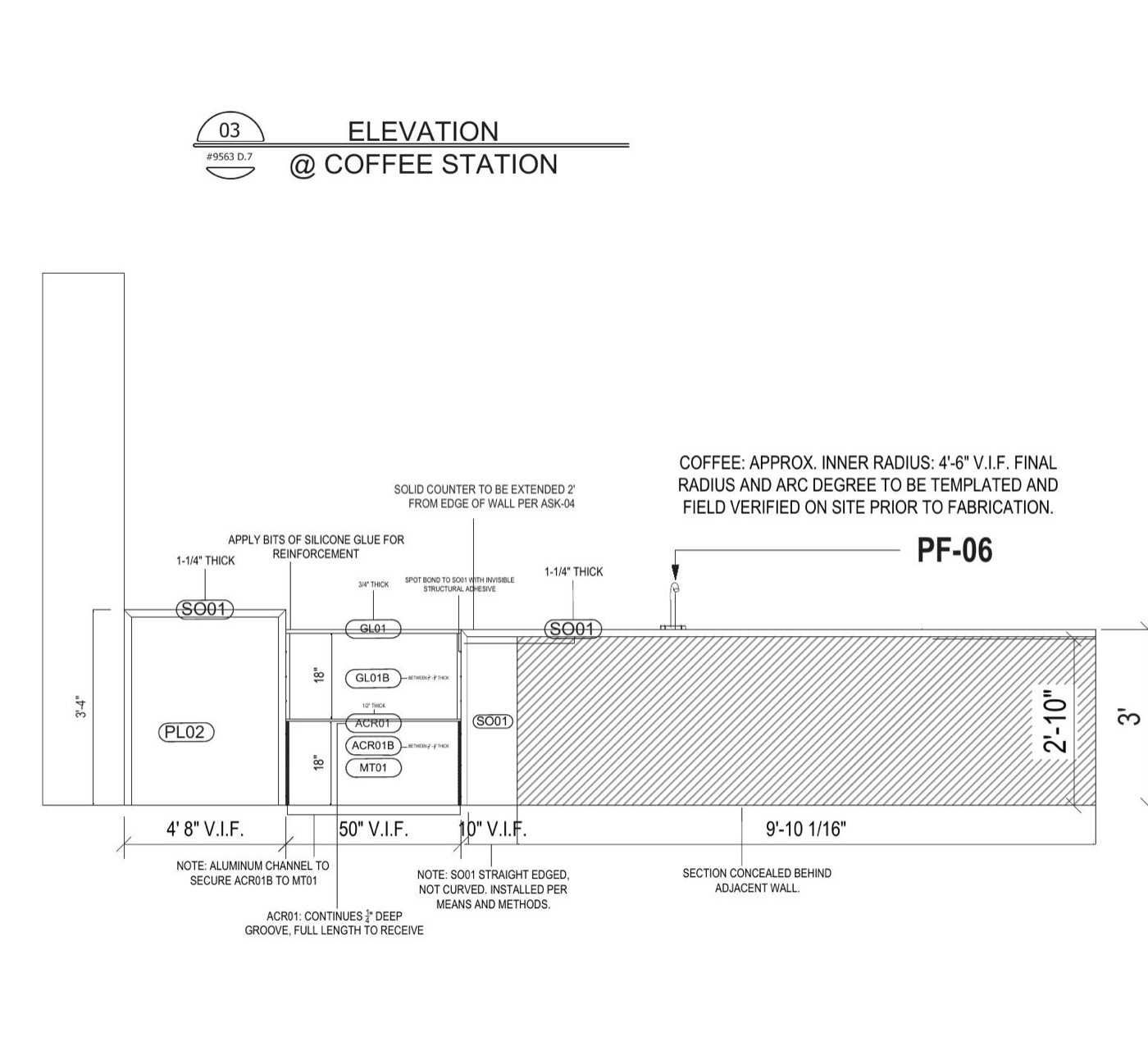

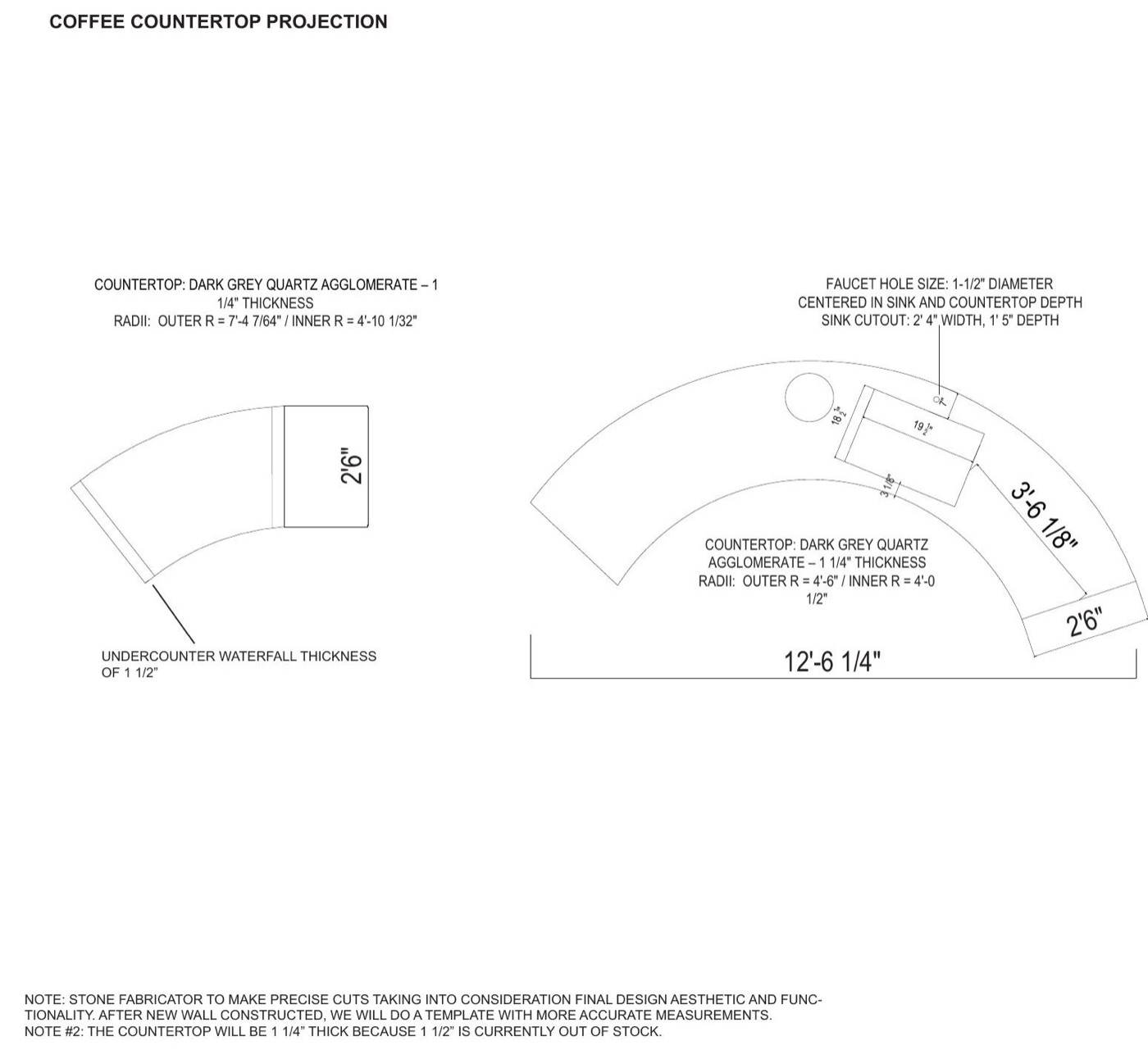

Metro coffee station shop drawing with its radius plan and coordinated sections
Metro shop drawings · Radius plan and coordinated sections
Drawing-based construction study of the curved coffee station
The architecture inside

Take a closer look.

Open the construction study Drawing-based reconstruction · Real project photographs remain below.

Drawing-based reconstruction

Drawing-based material reconstruction of the curved coffee station
Material study · A drawing-based reconstruction of the curved assembly
The completed curved Metro coffee station beneath the AI Digital spiral stair
Built by Metro · Actual project photograph

Metro shop drawings · Radius plan and coordinated sections

Source document Select to enlarge

The June lighting template and October clear-panel detail are shown separately. Their relative positions do not represent the installed arrangement.

Scroll to reveal

Drawings. Reconstruction. The built work.

Project records inform the reconstruction. The photographs show the actual installation. These views use different viewpoints.

Back to the case study
Gensler architectural rendering of the coffee station design intent
Design intent Rendering by Gensler
Completed Metro coffee station beneath the spiral stair
Built by Metro Completed project photograph

Gensler rendering and completed site photograph · Different viewpoints

The geometry behind the finish

Drawn to the radius.
Templated on site.

The counter was set out around the stair using field-verified dimensions. Metro’s drawings brought the stone radii, millwork, plumbing, lighting, equipment and storage into the same coordinated geometry.

The cabinetry, illuminated metal mesh, acrylic diffuser and individually sized light rows were coordinated with the stone and clear vitrine above.

Metro coffee station shop drawing with the radius plan and coordinated sections
Metro shop drawings Field-verified dimensions · Coordinated radii
Detail of the coffee station finish, integrated light and material junctions
In the detail Curved surfaces. Integrated light. Material junctions.
Coffee station base during installation
In progress Base set to the radius, before the stone.
04 materials / 01 continuous gesture

The hard part is where
everything comes together.

Actual curved light channels, end connections, clear enclosure and woven metal front at the coffee station
Inside the vitrine · October 14 Light rows, clear panels and woven metal. Actual site photograph.
AI Digital coffee station during site finishing, with curved clear enclosure, illuminated metal mesh, stone and oak counter
Site finishing · October 15 The coordinated materials in place.
Installation record · October 14, 2026

Curved glazing.
Integrated light.

Woven metal, illuminated rows and clear panels, recorded together during site finishing. A close view of the coordinated material junctions.

4 seconds · Silent original footageOpen installation film
Completed wood slat ceiling and wall at the AI Digital Open Garden

03The wood slat ceiling

Line after line.
One continuous plane.

From the café to the Open Garden,
wood carries the room.

03 Inside the work

One rhythm.
Many layers.

Pull the finish apart to read the concealed frame, acoustic infill and the continuous ceiling-to-wall junction.

Continue to the project

METRO The wood slat ceiling

0104
Metro shop drawing showing the irregular slat ceiling footprint and coordinated openings
Metro shop drawings · The ceiling pattern and coordinated openings
Drawing-based construction study of the wood slat ceiling
The architecture inside

Take a closer look.

Open the construction study Drawing-based reconstruction · Real project photographs remain below.

Drawing-based reconstruction

Drawing-based material reconstruction of the wood slat ceiling
Material study · A drawing-based reconstruction of the ceiling assembly
The completed oak finish slat ceiling continuing down the wall at AI Digital
Built by Metro · Actual project photograph

Metro shop drawings · The ceiling pattern and coordinated openings

Source document Select to enlarge

The corner shows a typical connection. The full ceiling pattern does not reconstruct the complete building suspension system.

Scroll to reveal

Drawings. Reconstruction. The built work.

Project records inform the reconstruction. The photographs show the actual installation. These views use different viewpoints.

Back to the case study
Actual slat-panel backs staged beside the black acoustic infill and metal framing
Before installation · June 15 Panel backs, acoustic infill and the frame.
The layers become a room

Assembled below.
Read as one surface.

The panel backs sit in the foreground. Behind them, black acoustic infill and metal framing trace the wall and ceiling.

These are the working layers behind the calm rhythm of the finished room.

Laid out slat by slat

Built as panels.
Read as architecture.

Metro coordinated the slat layout around the stair opening, room curves, lighting, sprinklers, diffusers and ductwork.

Metal frames, acoustic infill and wood battens were detailed as panels that could be assembled on the floor and lifted into place. The ceiling and wall meet as one continuous run of wood.

Metro wood slat ceiling layout around the stair and building systems
Metro shop drawings Every opening coordinated.
Wood slat ceiling panels staged and installed on site
Fabrication & installation Assembled below. Set overhead.
The Open Garden and continuous wood ceiling
Site film · October 2026A room drawn together by wood, light and planting.Open film Silent original footage · Selective exposure correction

04The bleachers & the people

Framed · Clad · Fitted by hand

Made by people.
Piece by piece.

Drawings make the work possible.
The crew makes it real.

Completed blue bleacher seating in the AI Digital town hall
The town hall Tiered seating, fitted into the architecture.
Metro installers fitting and cladding the blue bleacher seating
Metro in the field Framed, clad and fitted by hand.
Metro craftsmen working on the AI Digital millwork
Three generations of carpenters

From the first line
to the last
installed piece.

Shop drawings · Fabrication · Finishing · Installation

—How we delivered it

Complex work.
One accountable team.

In-house drawings. Our Hollywood shop.
Metro-supervised installation.
A continuous line of responsibility.

  1. February 2026Drawings issued

    Coffee station submittal begins the architectural review cycle.

  2. June 5, 2026Gensler review

    Coffee station cleared with noted corrections, no resubmittal required.

  3. June 2026Into the field

    Installation begins, coordinated with the GC and building systems.

  4. July–August 2026The ribbon rises

    Planter modules are suspended, leveled and joined.

  5. Completed 2026A place in use

    From the coffee station to the town hall and Open Garden.

The complete delivery process 13 phases
Preconstruction
  1. Bidding
  2. RFI questions & answers
  3. Revision
  4. Final contract
  5. Award & kickoff
Engineering
  1. Samples & logistics
  2. Shop drawings
  3. Architect & GC approvals
  4. Material ordering
Production & field
  1. Fabrication
  2. Installation
  3. Punch list
  4. Closeout

The people behind the work

Leadership

Herman Alter · David Alter

Management

Ezequiel Priven · Josue Vasquez
Joaquin Quignard · Marta Orozco

Design & shop drawings

Marcelo Sonnschein · Lucas Cabrera
Gabriela Grisolia · Juliana Ferreri
María García Santillan

Craftsmen & installation

Felipe Montalvan · Carlos Salvo
Jorge Perez · Luis Parce
Johan Santiago · Daniel Nunez

From the general contractor

AI Digital had some very complicated pieces, and David and the Metro team really stepped up. The hanging planter alone was a huge challenge given its weight. They took on the structural support, drainage and coordination of the installation, beyond just the millwork. Then there was the curved coffee station, getting the stone, acrylic and glass to work together, which was very difficult. There was a lot to figure out, and I appreciate their flexibility and willingness to work through it with us. I’d definitely work with them again.

Ariel ChuekeProject Manager · City Construction Group
Finished AI Digital hanging planter above the town hall

AI Digital · Miami · 2026

The drawing.
The detail.
The delivered room.

← Explore more Metro projectsMetro Millwork Third Generation Carpenters

Next

Let's build.
Emailhello@mdbmia.com
Phone(305) 300-7996
Shop
2040 Dewey St, Hollywood, FL 33020
